M-Flux M7 Round fixed or directional recessed downlighter with standard white ceiling trim and a choice of deep cone reflector finish and beam distribution.

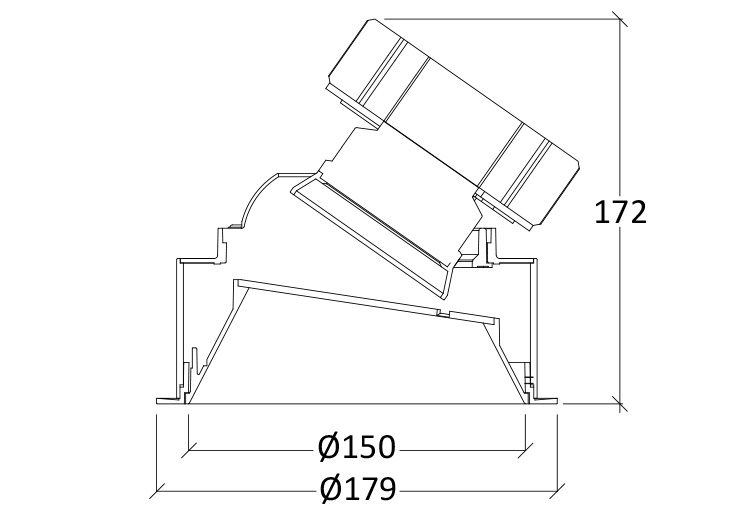

Overall diameter 179mm, cut out 165mm diameter. Complete with a Cree LED module, high colour rendering of CRI>90 and colour consistency of 2 Step Macdam as standard.
PRODUCT CODE GENERATOR
Please use the Product Code Generator to specify the LUMINAIRE, LIGHT ENGINE and DRIVER you want to use. This will help ensure the correct PRODUCT CODE for the product you want is specified. A Product Summary and zip file with cut sheet images will be generated.
For a DAL datasheet PRESS the BUTTON below or select it from the PRODUCT RANGE DOWNLOADS.
PRODUCT RANGE PDF
Download for more in-depth LED output, power, colour and driver details.
Press here for PDF filePRODUCT RANGE
- M7 ROUND
-
Product No. LED Module / Beam IP Rating Downloads M7 - 700 lm Ultra Narrow / 8º IP20 / IP44 / IP54 M7 - 2000 lm Narrow / 10º IP20 / IP44 / IP54 M7- 3100 to 5000 lm Standard / 16º, 25º, 33º, 50º IP20 / IP44 / IP54 M7 - 3100 to 5000 lm High Power / 23º, 32º, 40º, 52º IP20 / IP44 / IP54 M7 - 5000 to 6500 lm Super High IP20 / IP44 / IP54
-
