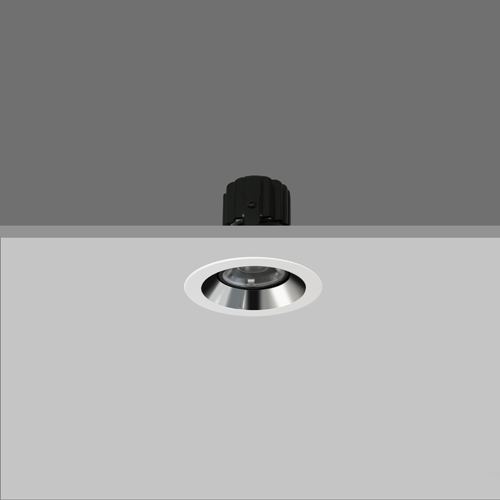

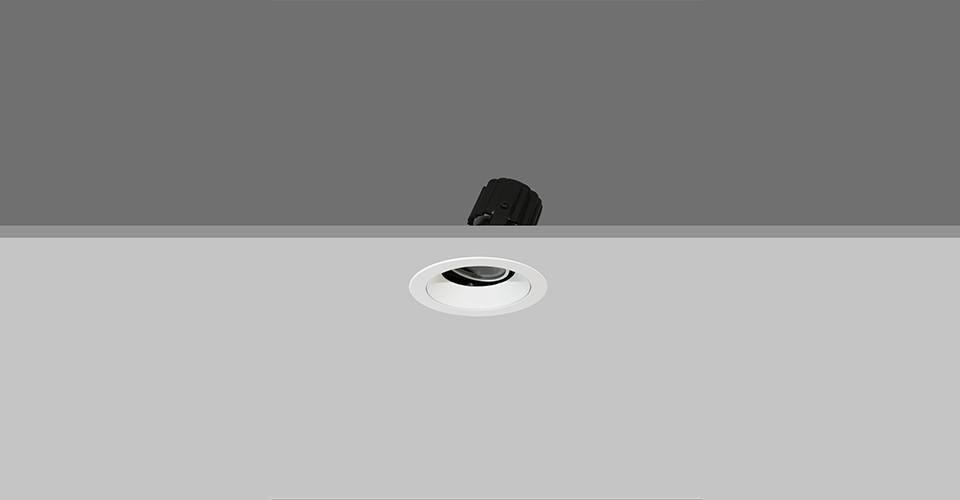

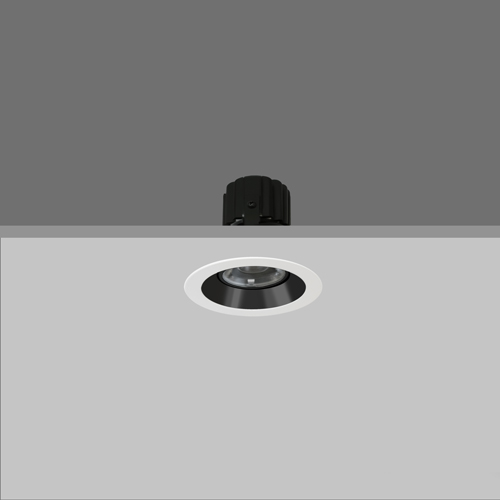

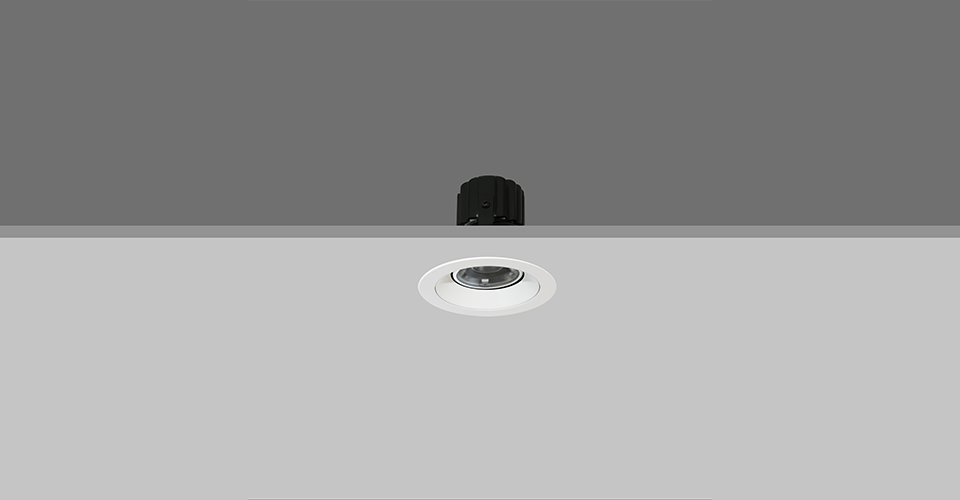

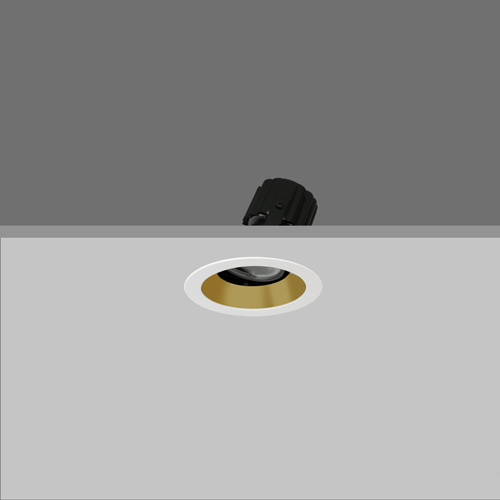

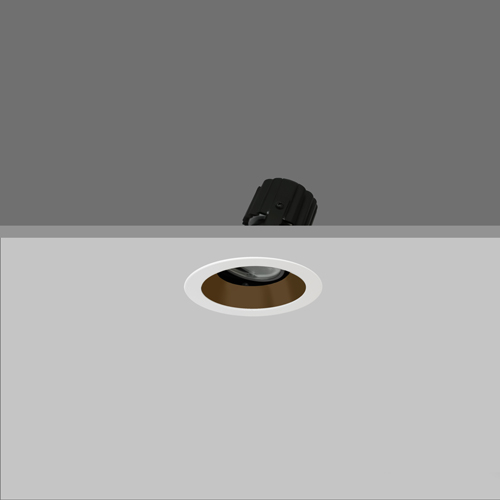

Compact 89 round (LED Module) recessed downlighter with standard white ceiling trim and a choice of reflector finish and beam distribution. The high-quality precision optics gives visual comfort. It can be positioned downwards as a fixed downlighter, adjusted for a directional downlighter, and adjusted (wide beam) to perform as a wall wash. The accessory holder allows provision for elliptical film / lens and honeycomb louvre for glare control (optional). A flexible lighting solution for all situations.
PRODUCT CODE GENERATOR
Please use the Product Code Generator to specify the LUMINAIRE, LIGHT ENGINE and DRIVER you want to use. This will help ensure the correct PRODUCT CODE for the product you want is specified. A Product Summary and zip file with cut sheet images will be generated.
For a DAL datasheet PRESS the BUTTON below or select it from the PRODUCT RANGE DOWNLOADS.
SEE THE RANGE AND GENERATE THE PRODUCT CODE
PRODUCT RANGE PDF
Download for more in-depth LED output, power, colour and driver details.
Press here for PDF file
Information
PRODUCT RANGE
- COMPACT89
-
Product No. LED Module / Beam IP Rating Downloads 700 lm 21º / 33º / 44º / 54º IP20 / IP44 900 lm 21º / 33º / 44º / 54º IP20 / IP44 1100 lm 21º / 33º / 44º / 54º IP20 / IP44 1300 lm 21º / 33º / 44º / 54º IP20 / IP44
-
Photometry
Press here for .IES files
