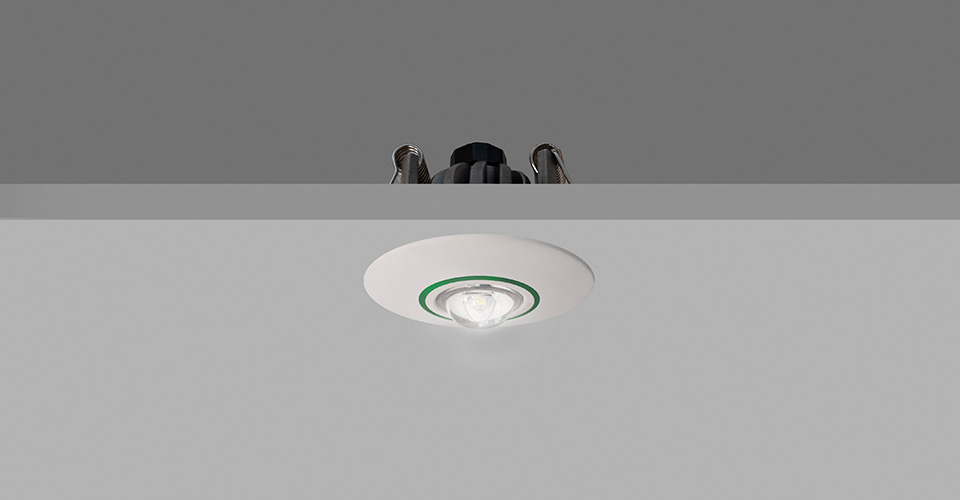

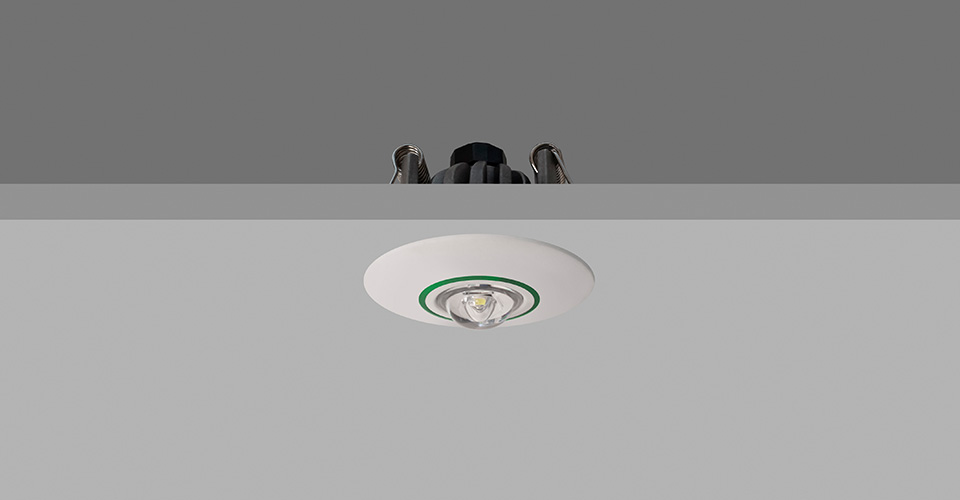

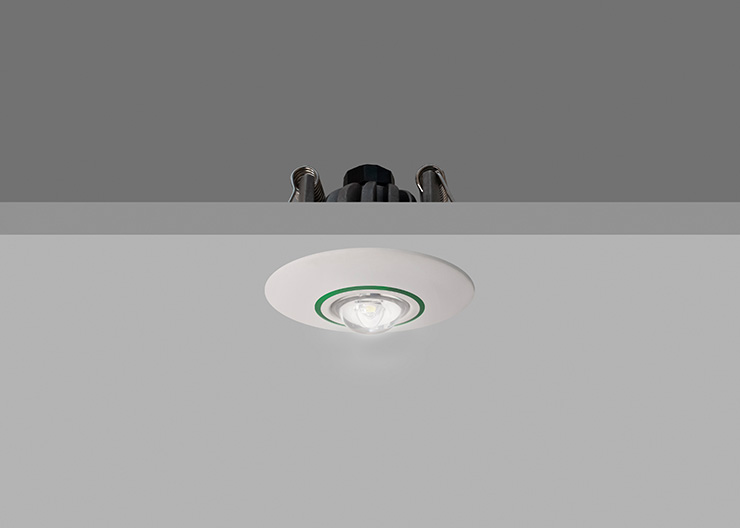

WAYLIGHT 4 Open Area Lens recessed emergency LED with White (RAL9016) or Black (RAL 9005) Trim. 135° Beam Angle with a constant current 3W white LED.
All WAYLIGHT 4 units contain a unique Bi-Colour Halo effect LED indicator: green charge for healthy and red for self-test function. 3-hour non-maintained as standard.
Designed to comply with all of the requirements of BS EN 61347-2-7, BS EN 60598-2-22:2014
- WAYLIGHT 4 OPEN AREA LENS
Product No. Emergency Trim Finish N039070070N Non-Addressable White N039070079N DALI Addressable White N049070070N Non-Addressable Black N049070079N DALI Addressable Black
The main 6500K 3W LED can be driven up to 700mA.
PRODUCT RANGE PDF
Download for more in-depth product details.Press here for PDF
