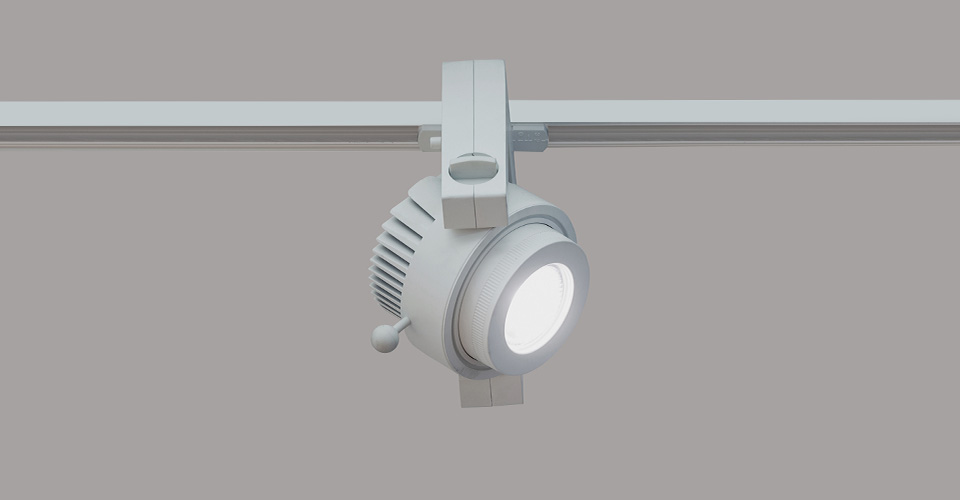

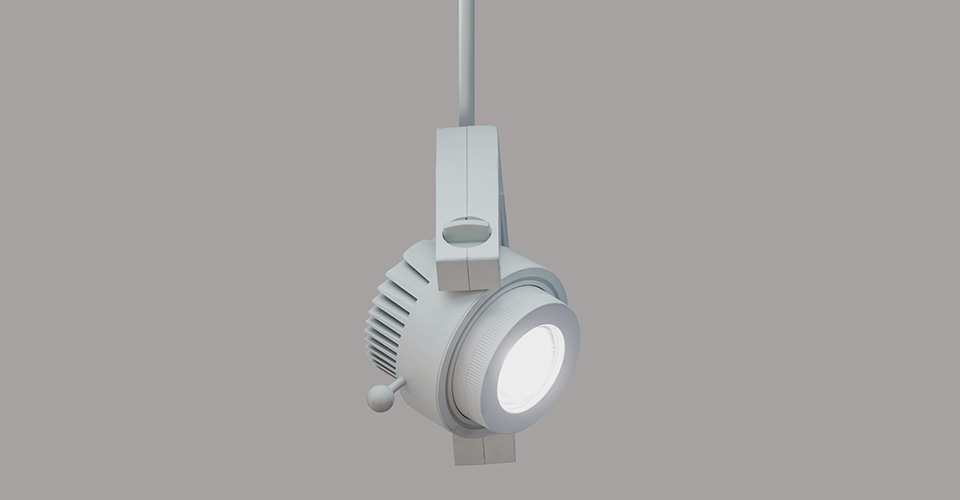

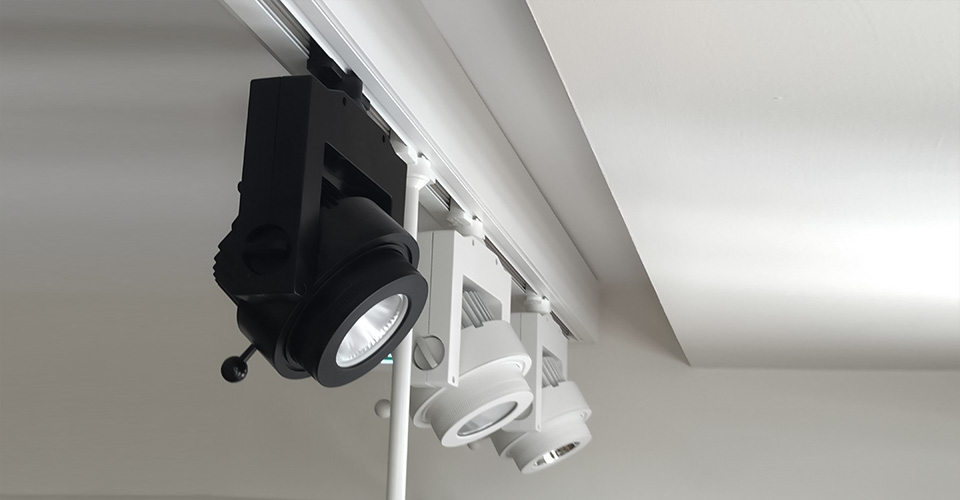

Baltic X adjustable LED spotlight with Xicato LED light engine, interchangeable reflectors, integral 1-10v dimmable driver, and finished white (RAL 9010). Suitable for track mounting, universal 3 circuit type adaptor comes as standard. Baltic X is designed for Xicato XTM modules.
- XTM XICATO ARTIST SERIES RA98
Product No. CRI Colour Temperature D1500/20B210 Ra98 2700K D1500/20B310 Ra98 3000K D1500/20B410 Ra98 3500K D1500/20B510 Ra98 4000K
- REFLECTOR OPTIONS FOR XTM
Product No. Beam Angle Reflector holder type Downloads D5400 12° - Narrow B D5500 24° - Medium A D5600 42° - Wide A D5700 67° - Flood A D5800 80° - Washer C
Product No. Product Description D3700 Barn doors for type A reflector holder
How to specify
To specify Baltic X both the Product Number and the Engine number are needed. Choose the required Series, Colour Rendering Index (CRI - Ra) and Colour Temperature (K) and Colour Rendering Index (CRI - Ra). Then choose the reflector beam angle.

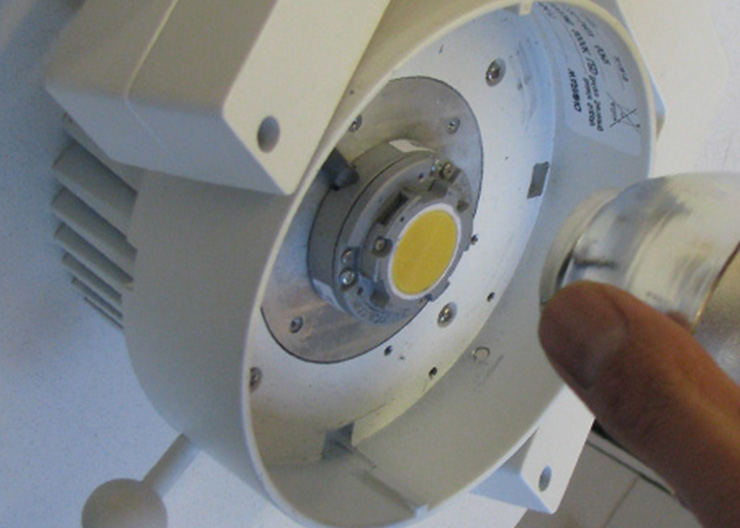

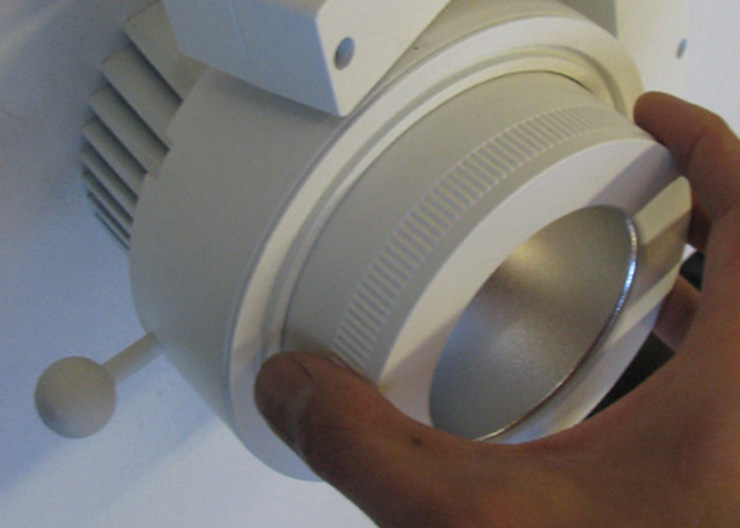

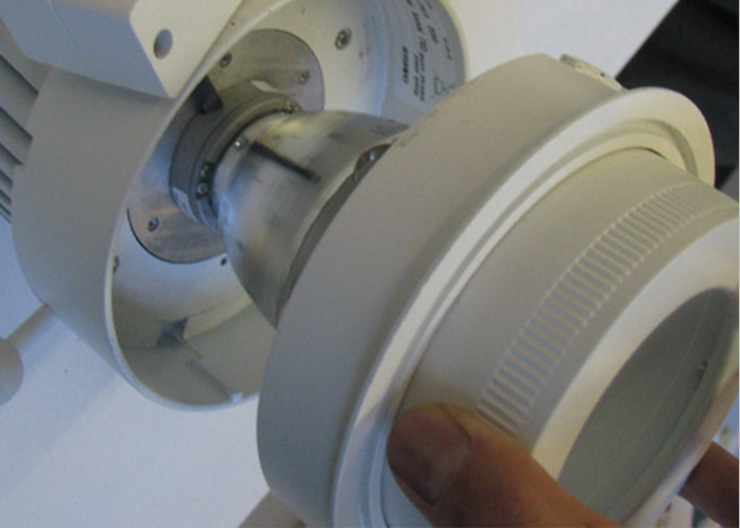

Reflector holder Type A comes as part of the body assembly and has interchangeable reflectors as shown. One reflector comes with the spotlight and is the client’s choice. Additional reflectors can be ordered separately.
Display Lighting and Visual Effects
There are many things to consider when lighting paintings or displays, not just the amount of light, (as discussed in the LED Spotlight brochure section: Conservation) but also the type of object and how it is to be exhibited. The amount of light needed to make a noticeable, significant or a dramatic difference will depend on the surrounding, ambient level of light. A candle’s flame will look bright and illuminate the surroundings in a darkened room but will be barely perceptible in a bright, day lit environment. Also, the colour and reflective properties of the object will affect its perceived brightness (luminance).

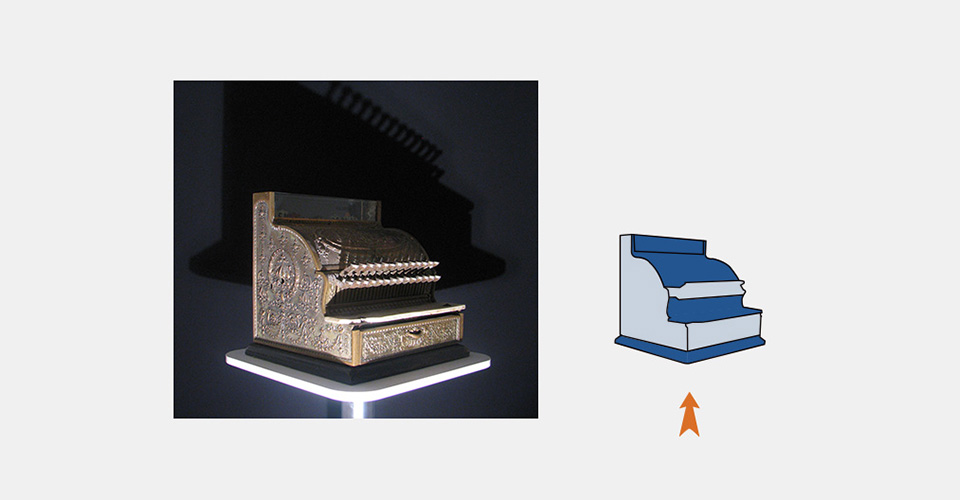

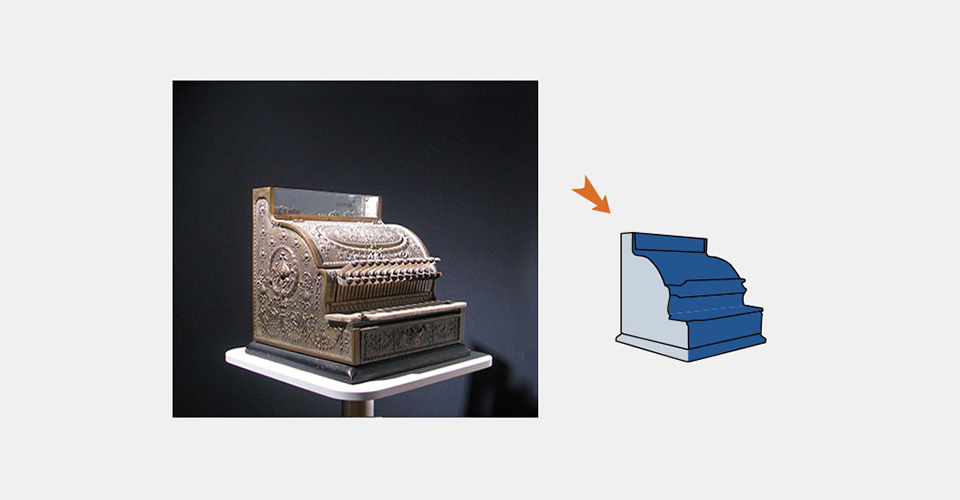

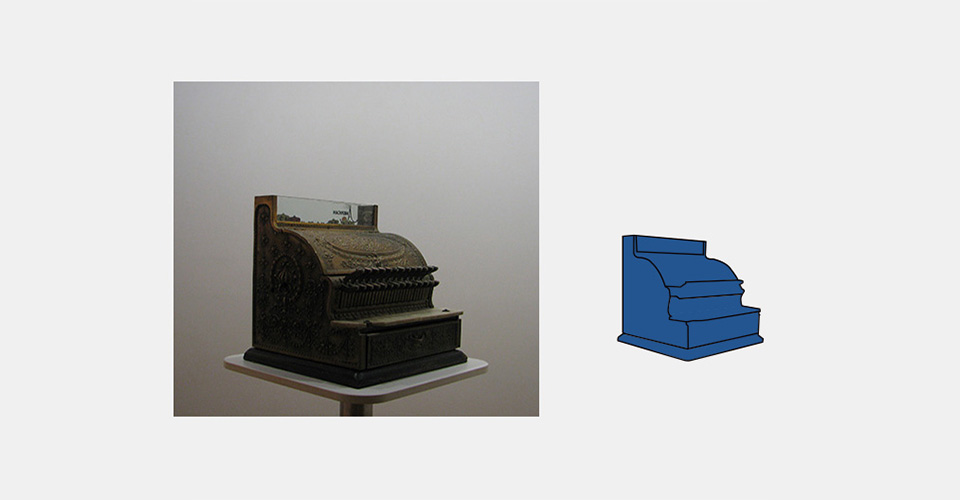

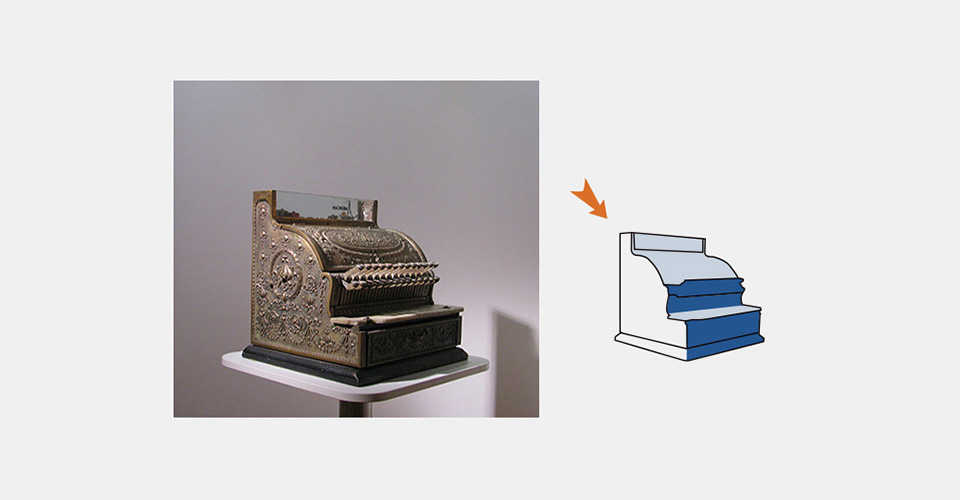

The photographs illustrate simply how the angle of light can reveal or hide the form of an object or add interest.
Baltic X adjustable LED spotlight with Xicato LED light engine, interchangeable reflectors, integral 1-10v dimmable driver, and finished white (RAL 9010). Suitable for track mounting, universal 3 circuit type adaptor comes as standard.
