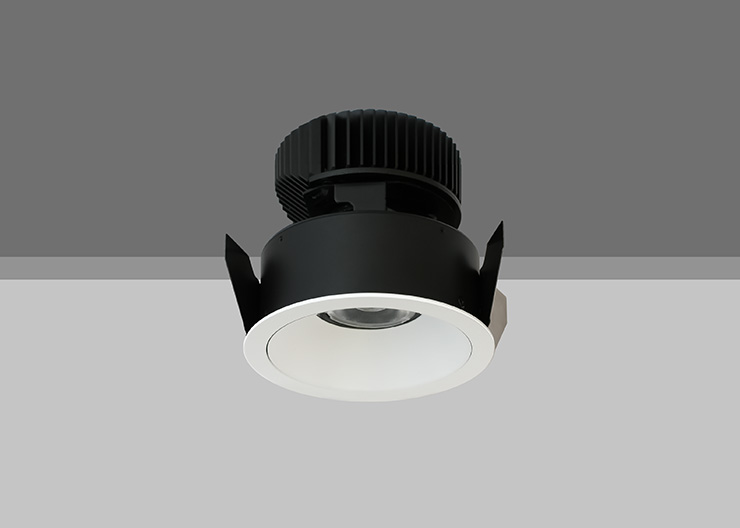

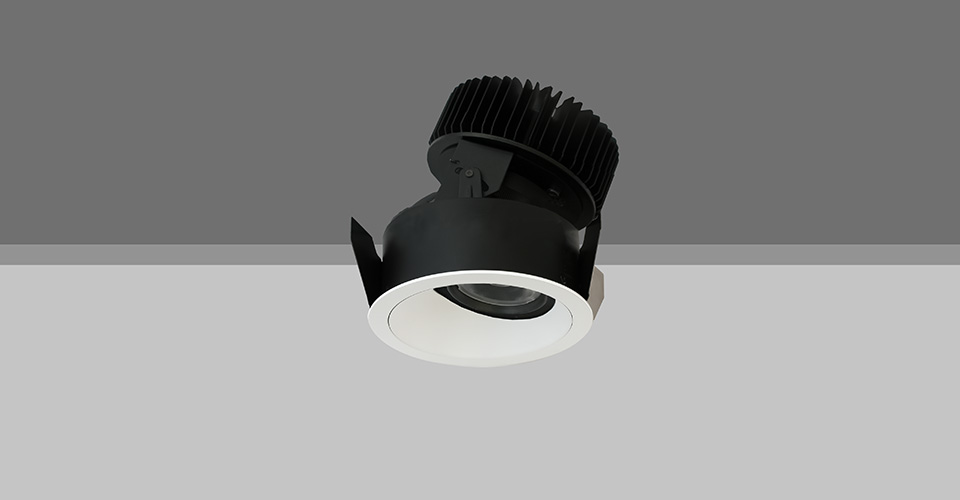

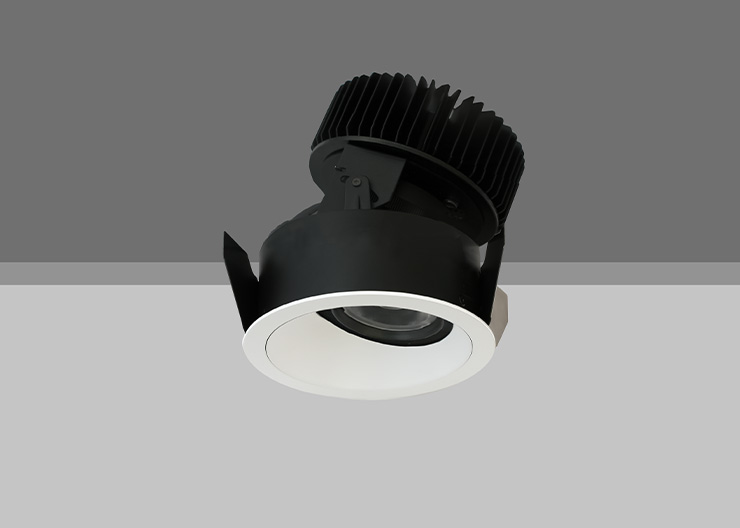

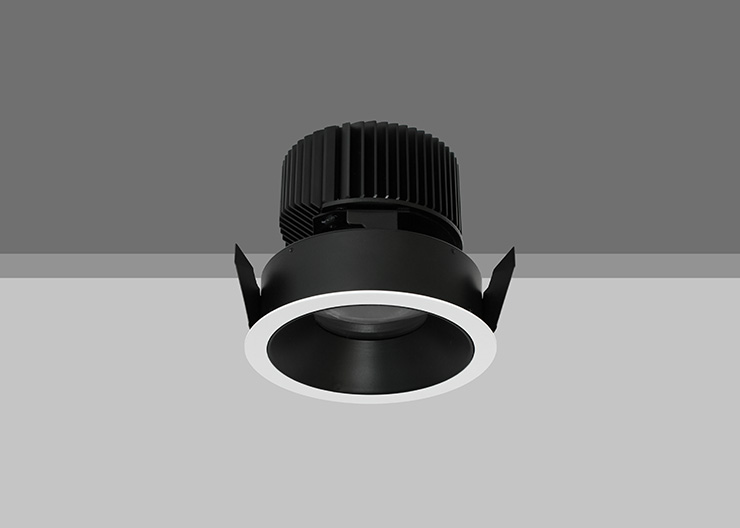

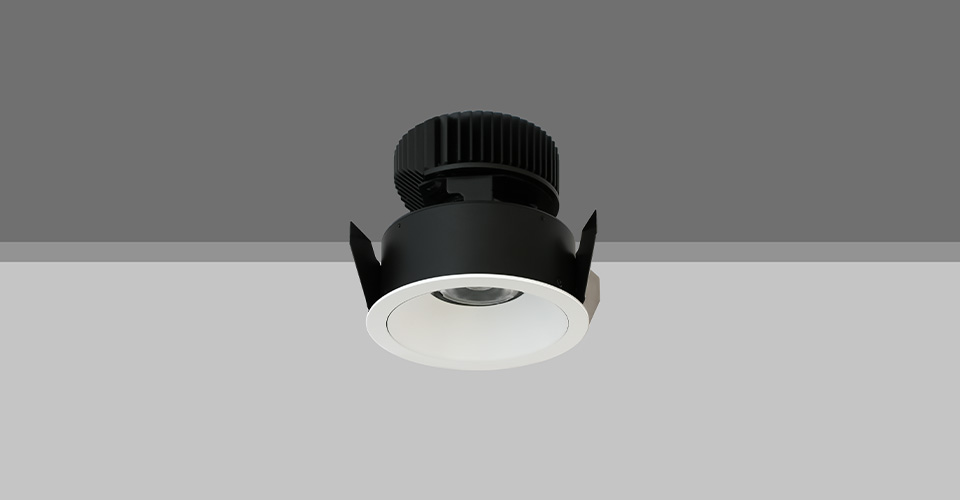

M-Flux M3 Round fixed or directional recessed downlighter with standard white ceiling trim and a choice of deep cone reflector finish and beam distribution. Maximum tilt angle 36 degree.
Overall diameter 89mm, cut out 80mm diameter. Complete with a Cree LED module, high colour rendering of CRI>90 and colour consistency of 2 Step Macdam as standard.
PRODUCT CODE GENERATOR
Please use the Product Code Generator to specify the LUMINAIRE, LIGHT ENGINE and DRIVER you want to use. This will help ensure the correct PRODUCT CODE for the product you want is specified. A Product Summary and zip file with cut sheet images will be generated.
For a DAL datasheet PRESS the BUTTON below or select it from the PRODUCT RANGE DOWNLOADS.
SEE THE RANGE AND GENERATE THE PRODUCT CODE
PRODUCT RANGE PDF
Download for more in-depth LED output, power, colour and driver details.
Press here for PDF file
Information
PRODUCT RANGE
- M3 ROUND
-
Product No. LED Module / Beam IP Rating Downloads M3 - 700 lm Ultra Narrow / 10º IP20 / IP44 / IP54 M3 - 1300 to 2000 lm Narrow / 13º IP20 / IP44 / IP54 M3 - 1500 to 3300 lm Standard / 19º, 25º, 40º, 55º IP20 / IP44 / IP54
-
Photometry
Press here for .IES files
