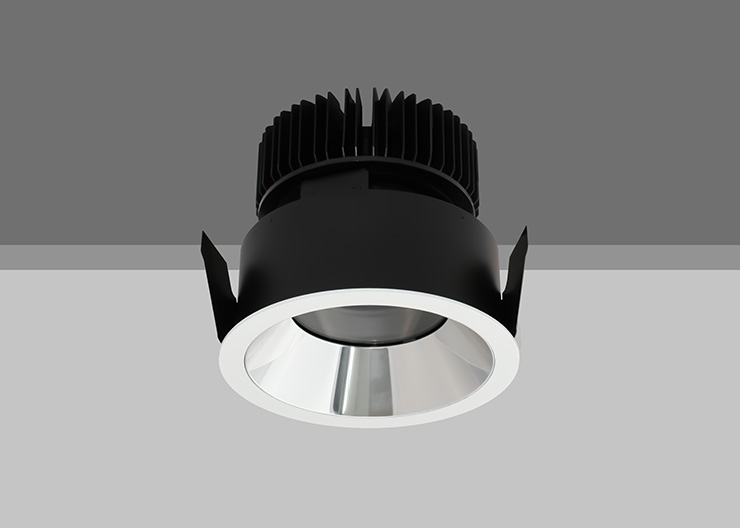

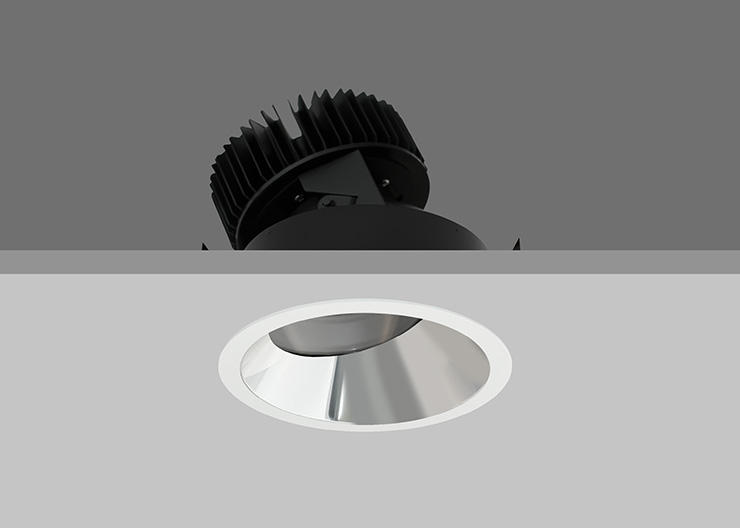

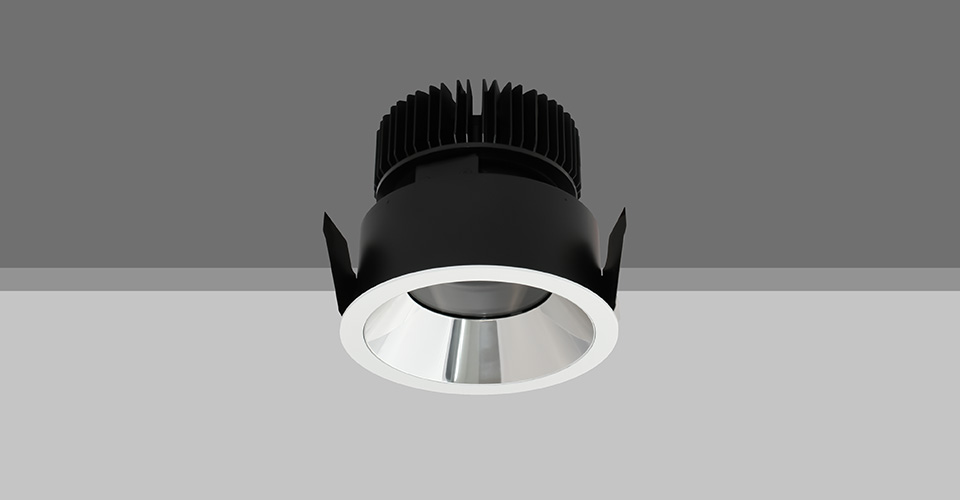

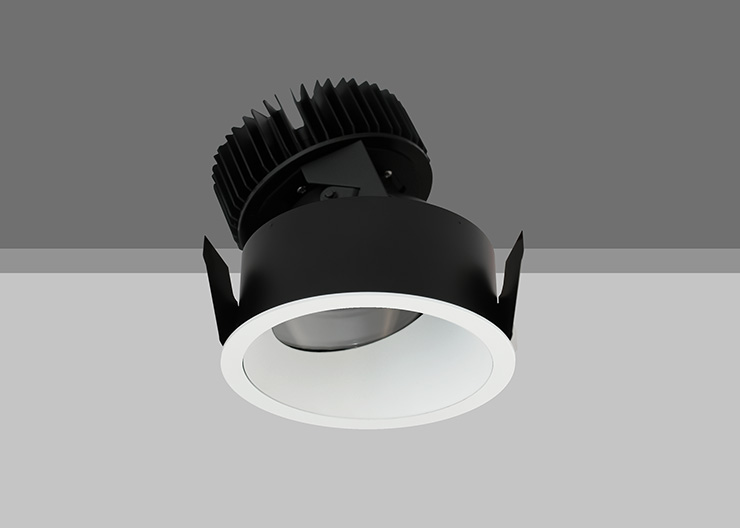

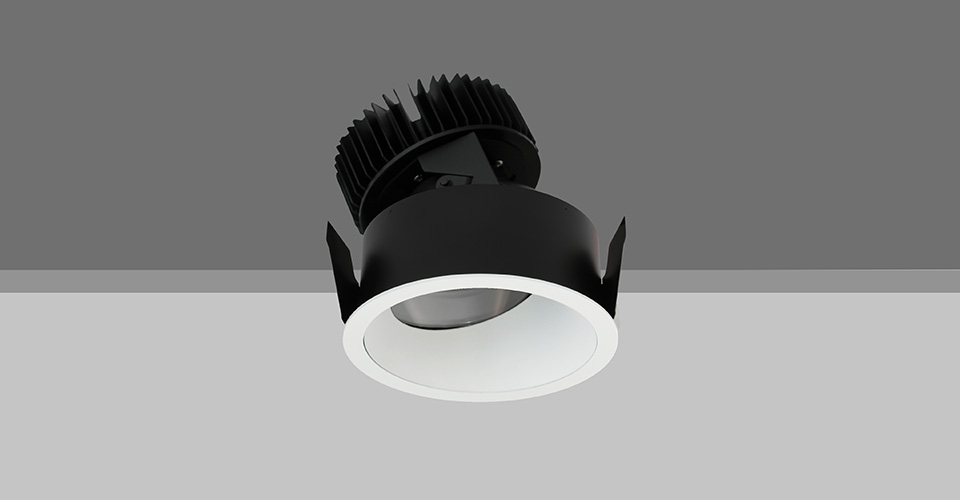

M-Flux M5 Round fixed or directional (with 40° tilt) recessed downlighter with standard white ceiling trim and a choice of deep cone reflector finish and beam distribution.
Overall diameter 128mm, cut out 116mm diameter. Complete with a Cree LED module, high colour rendering of CRI>90 and colour consistency of 2 Step Macdam as standard.
Information
PRODUCT RANGE
- M5 ROUND
-
Product No. LED Module / Beam IP Rating M5 - 700 lm Ultra Narrow / 10º IP20 / IP44 / IP54 M5 - 1700 to 1600 lm Narrow / 13º IP20 / IP44 / IP54 M5- 1730 to 2380 lm Standard / 19º, 25º, 40º, 55º IP20 / IP44 / IP54 M5 - 2630 lm High Power / 28º, 33º, 49º, 57º IP20 / IP44 / IP54
-
PRODUCT RANGE PDF
Download for more in-depth LED output, power, colour and driver details.
Press here for PDF file
Photometry
Press here for .IES files
PRODUCT CODE GENERATOR
Please use the Product Code Generator to specify the LUMINAIRE, LIGHT ENGINE and DRIVER you want to use. This will help ensure the correct PRODUCT CODE for the product you want is specified. A Product Summary and zip file with cut sheet images will be generated.
For a DAL datasheet PRESS the BUTTON below or select it from the PRODUCT RANGE DOWNLOADS.
SEE THE RANGE AND GENERATE THE PRODUCT CODE
