SERIES

Series code will deterrmine the family of the product i.e. apeture, diameter and general build.

TYPE

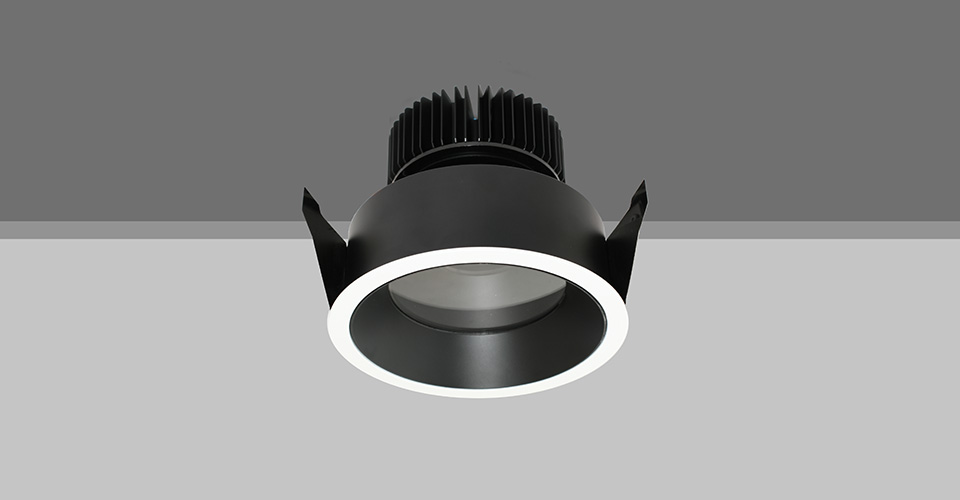

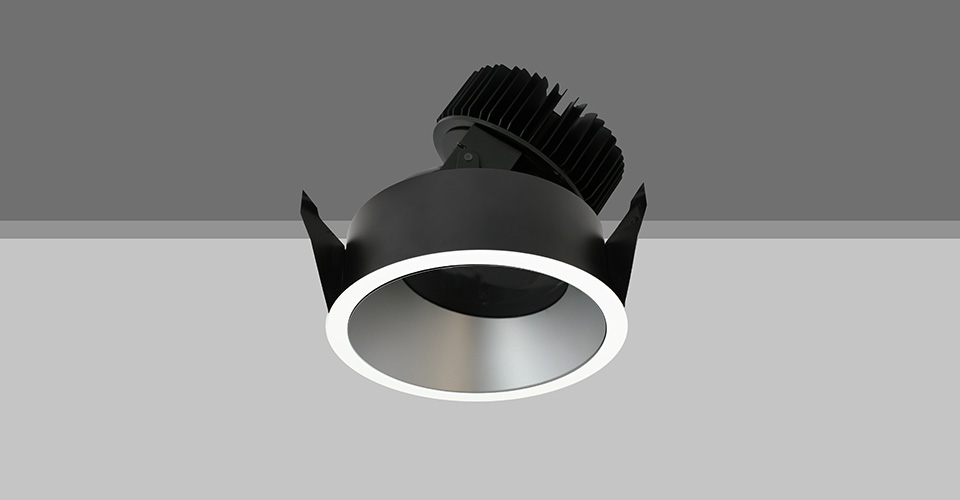

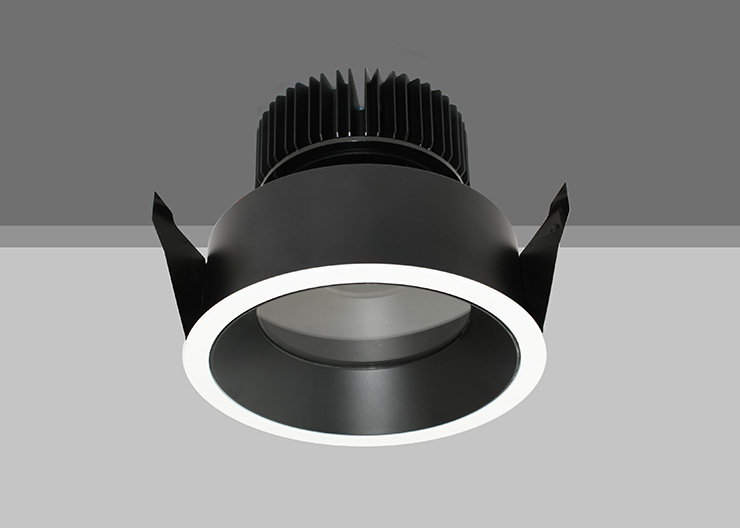

Type will the function of the downlighter a choice of fixed, adjutable or wallwasher.

DISTRIBUTION

FINISH

FINISH

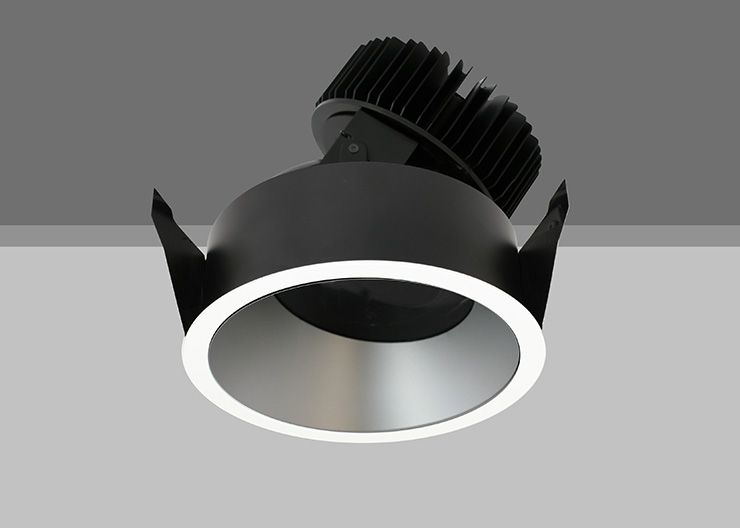

Sometimes there is a choice of reflector finish. Please pick one.

INITIAL LUMENS

Cree CRI>90 - 2 Steps as standard LED module. For other lumen outputs please contact us.

COLOUR TEMP

DRIVER

A driver is needed to operate and control every LED luminaire. They are self-contained units but are wired to the luminaire and have outputs matched to the characteristic of the LED. Its specification depends on whether dimming is required or not. There is also ADDRESSABLE, which is only relevant to DALI addressable fixtures requiring emergency and should be specified with emergency fixtures for that protocol.

EMERGENCY PACK

Please specify whether or not the luminaire is to operate in an emergency situation.

If DALI drivers are specified and have to be operated in emergency mode please also specify an ADDRESSABLE driver.

SHAPE

A choice of round or square.

TRIM

IP RATING

P refers to the Ingress Protection of a luminaire. The first number indicates the level of protection the luminaire provides against the ingress of solid foreign bodies. The second number indicates the level of protection the luminaire provides against the ingress of moisture. IP20 gives protection for normal interior use. IP44 / IP54 gives higher protection for areas with water such as bath and shower rooms.
