PRODUCT CODE GENERATOR

Select product production details to generate its unique product code. See below your summary, relevant information and downloadable content

CIVIC ø102 INTEGRAL

IP

IP

IP refers to the Ingress Protection of a luminaire. The first number indicates the level of protection the luminaire provides against the ingress of solid foreign bodies. The second number indicates the level of protection the luminaire provides against the ingress of moisture. IP20 gives protection for normal interior use.

IP20 - WHITE

IP20 - BLACK
BEAM ANGLE

BEAM ANGLE

Please choose the beam angle.

If more exact photometric details are needed please refer to the polar curves or data files.

40 º

60 º
LUMENS/WATTAGE - 2000 lm / CRI80 / 18.2W

LUMENS/WATTAGE

There are usually a number of lumen outputs to choose from, please specify which one you want.

2000 lm / CRI80 / 18.2W
COLOUR TEMPERATURE

COLOUR TEMPERATURE

LEDs come in a variety of colour temperatures, those available are shown. LEDs also come in different CRI colour rendering groups. Unless otherwise shown the LEDs are Ra > 80. If a higher specification is required please check for availability.

2700K

3000K

4000K
DIMMING

DIMMING

1-10V

DALI

PRODUCT SUMMARY

PRODUCT CODE:C032113A23E

_-
_-
20X-
_-
_

COPY CODE TEXT COPIED!

VIEW SUMMARY

BACK TO GENERATOR

DOWNLOAD SUMMARY DOWNLOADED!

Please view on a larger screen

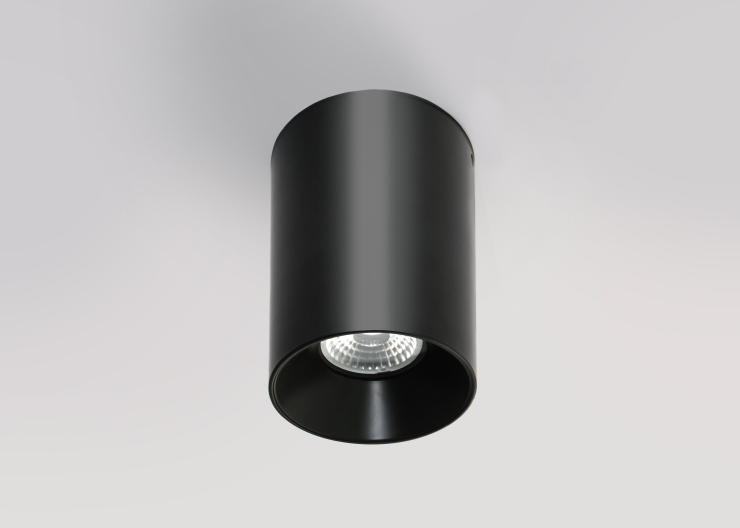

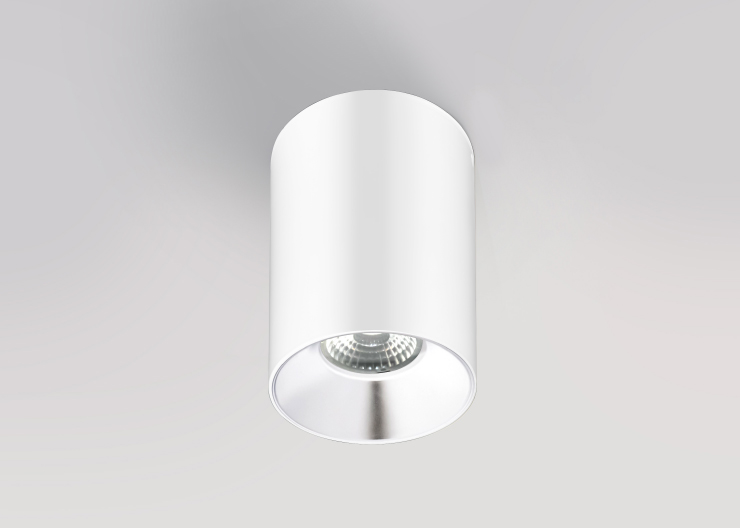

CIVIC XIM102 INTEGRATED with Xicato LED surface mounted downlighter with deep cone reflector finished in specular silver, with white or black casing. Driver mounted remotely.

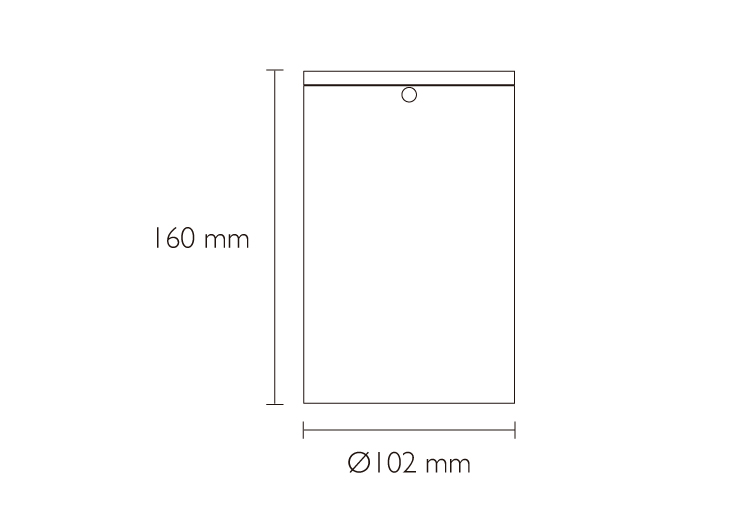

Overall diameter 102mm x 160mm high.

PRODUCT CODE GENERATOR

Please use the Product Code Generator to specify the LUMINAIRE, LIGHT ENGINE and DRIVER you want to use. This will help ensure the correct PRODUCT CODE for the product you want is specified. A Product Summary and zip file with cut sheet images will be generated.

For a DAL datasheet PRESS the BUTTON below or select it from the PRODUCT RANGE DOWNLOADS.

GENERATE PRODUCT CODE
