Description

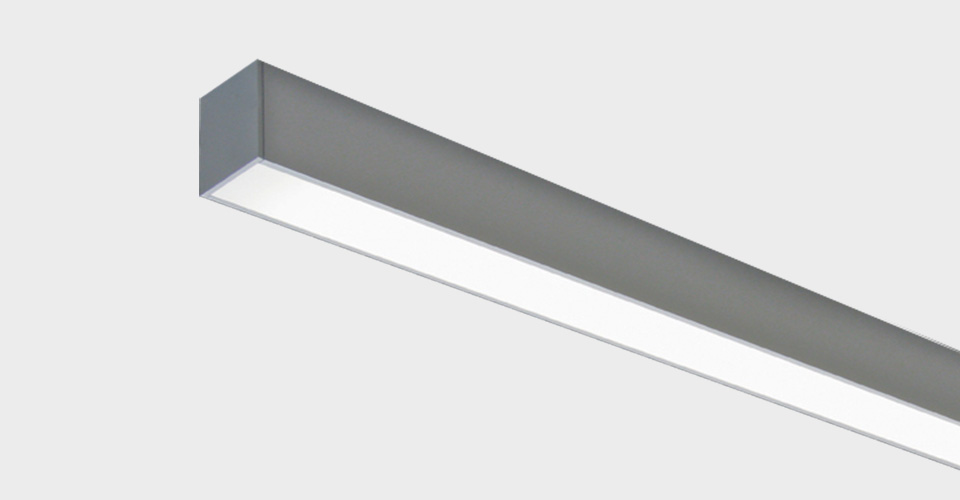

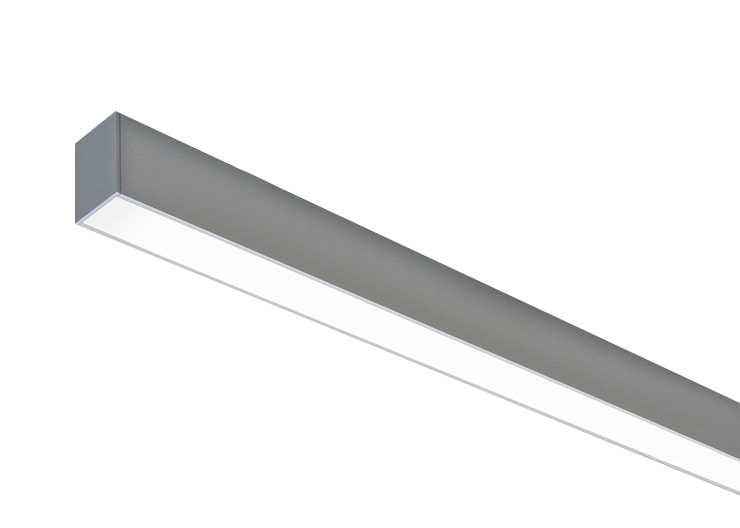

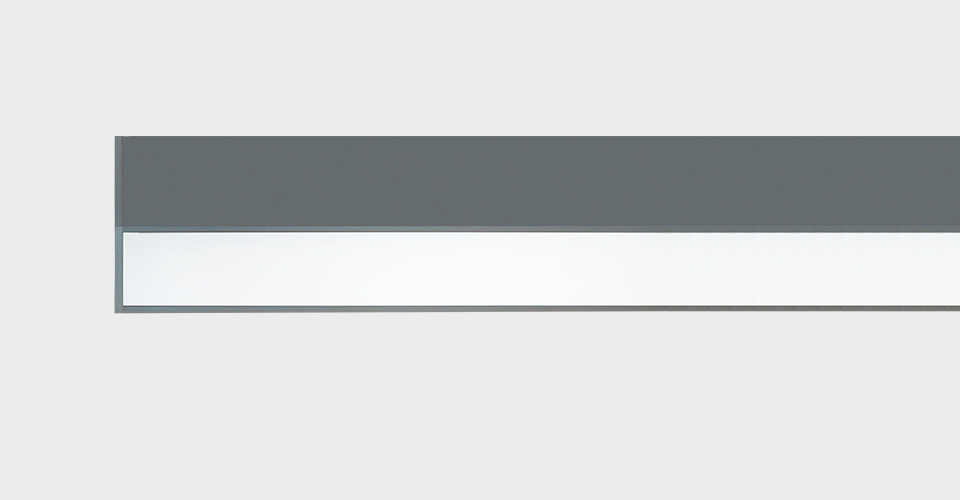

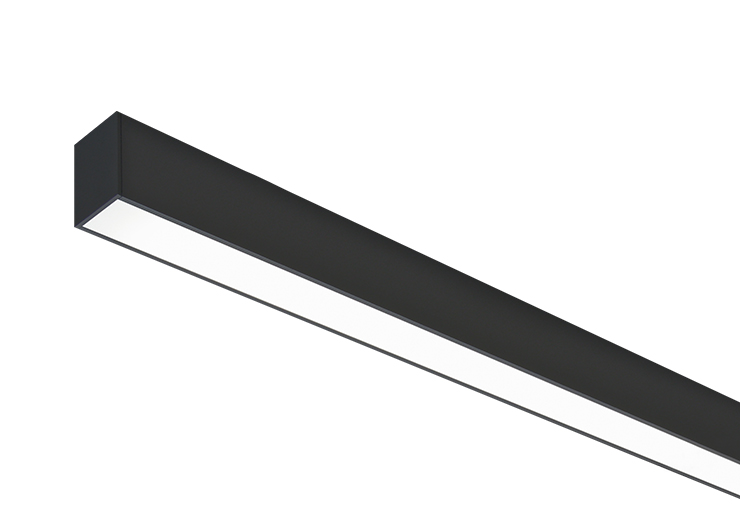

LIGHTLINE LED 60 can be surface mounted or suspended from the ceiling. It consists of an aluminium extruded profile constructed as individual modules in various chassis length, which come complete with intergral driver. Optical control is provided by clip in opal diffuser.
INFORMATION
PRODUCT RANGE
- HE WITH INTEGRAL DRIVER
-
Product No. Length / Colour Temp lm Flux / LED (W) / IP Downloads L1002 580mm / 3000K 1240 lm / 8.6W / IP40 L1003 860mm / 3000K 1860 lm / 12.9W / IP40 L1004 1140mm / 3000K 2480 lm / 17.2W / IP40 L1005 1420mm / 3000K 3100 lm / 21.5W / IP40 L1006 1700mm / 3000K 3720 lm / 25.8W / IP40 L1102 580mm / 4000K 1280 lm / 8.6W / IP40 L1103 860mm / 4000K 1920 lm / 12.9W / IP40 L1104 1140mm / 4000K 2560 lm / 17.2W / IP40 L1105 1420mm / 4000K 3200 lm / 21.5W / IP40 L1106 1700mm / 4000K 3840 lm / 25.8W / IP40 For continous length please contact us for further information. As a guide use multiples of 280mm plus 20mm for tolerance and end caps.
-
- HO WITH INTEGRAL DRIVER
-
Product No. Length / Colour Temp lm Flux / LED (W) / IP Downloads L1202 580mm / 3000K 2260 lm / 15.6W / IP40 L1203 860mm / 3000K 3390 lm / 23.4W / IP40 L1204 1140mm / 3000K 4520 lm / 31.2W / IP40 L1205 1420mm / 3000K 5650 lm / 39.0W / IP40 L1206 1700mm / 3000K 6780 lm / 56.8W / IP40 L1302 580mm / 4000K 2340 lm / 15.6W / IP40 L1303 860mm / 4000K 3510 lm / 23.4W / IP40 L1304 1140mm / 4000K 4680 lm / 31.2W / IP40 L1305 1420mm / 4000K 5850 lm / 39.0W / IP40 L1306 1700mm / 4000K 7020 lm / 48.8W / IP40 For continous lngth please contact us for further information. As a guide use multiples of 280mm plus 20mm for tolerance and end caps.
-
- HE WITH REMOTE DRIVER
-
Product No. Length / Colour Temp lm Flux / LED (W) / IP Downloads L8002 580mm / 3000K 1240 lm / 8.6W / IP40 L8003 860mm / 3000K 1860 lm / 12.9W / IP40 L8004 1140mm / 3000K 2480 lm / 17.2W / IP40 L8005 1420mm / 3000K 3100 lm / 21.5W / IP40 L8006 1700mm / 3000K 3720 lm / 25.8W / IP40 L8102 580mm / 4000K 1280 lm / 8.6W / IP40 L8103 860mm / 4000K 1920 lm / 12.9W / IP40 L8104 1140mm / 4000K 2560 lm / 17.2W / IP40 L8105 1420mm / 4000K 3200 lm / 25.1W / IP40 L8106 1700mm / 4000K 3840 lm / 25.8W / IP40 For continous lngth please contact us for further information. As a guide use multiples of 280mm plus 20mm for tolerance and end caps.
-
- HO WITH REMOTE DRIVER
-
Product No. Length / Colour Temp lm Flux / LED (W) / IP Downloads L8202 580mm / 3000K 2260 lm / 15.6W / IP40 L8203 860mm / 3000K 3390 lm / 23.4W / IP40 L8204 1140mm / 3000K 4520 lm / 31.2W / IP40 L8205 1420mm / 3000K 5650 lm / 39W / IP40 L8206 1700mm / 3000K 6780 lm / 46.8W / IP40 L8302 580mm / 4000K 2340 lm / 15.6W / IP40 L8303 860mm / 4000K 3510 lm / 23.4W / IP40 L8304 1140mm / 4000K 4680 lm / 31.2W / IP40 L8305 1420mm / 4000K 5850 lm / 39W / IP40 L8306 1700mm / 4000K 7020 lm / 46.8W / IP40 For continous lngth please contact us for further information. As a guide use multiples of 280mm plus 20mm for tolerance and end caps.
-
